Grinding wheel
Introduction of industry
Abrasive materials are mainly composed of binder, grain, class fiber, cloth, paper, synthetic fiber, and etc. Phenolic resin plays an important role in process procedure of wetting, coating, impregnate, binding, adhesive, and disperse. Phenolic resin is widely used in grinding wheel, abrasive paper, sand cloth, and grinding tools for improve the performance of waterproof, heat resistance, wear resistance, and adhesion.

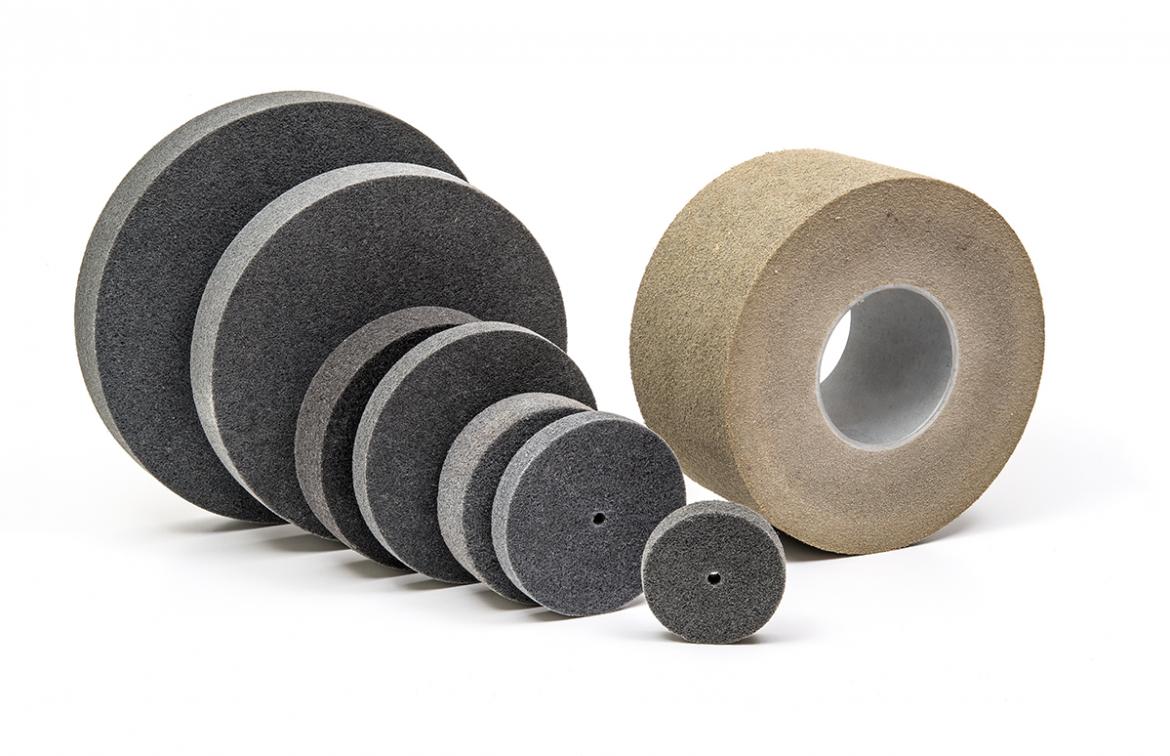

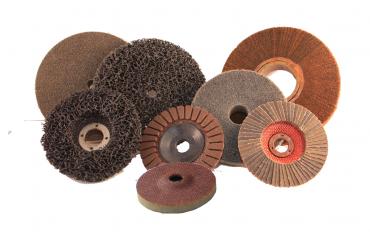

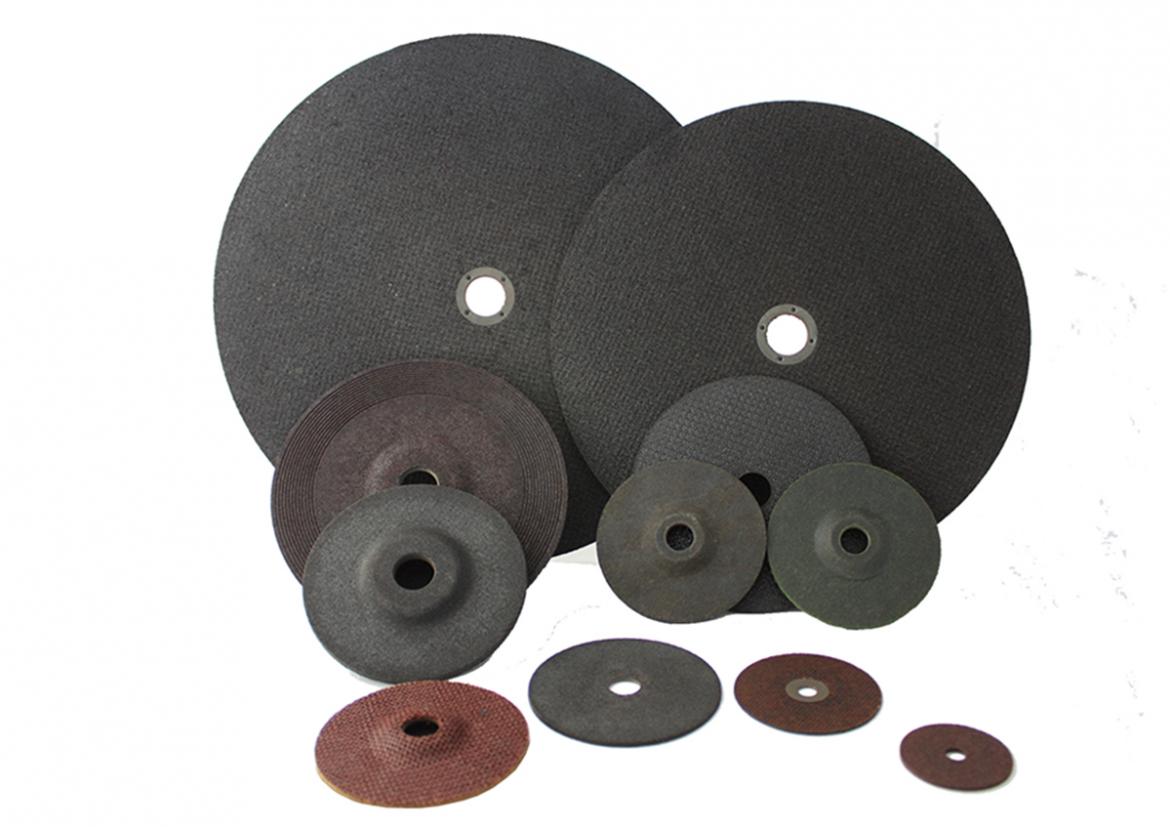

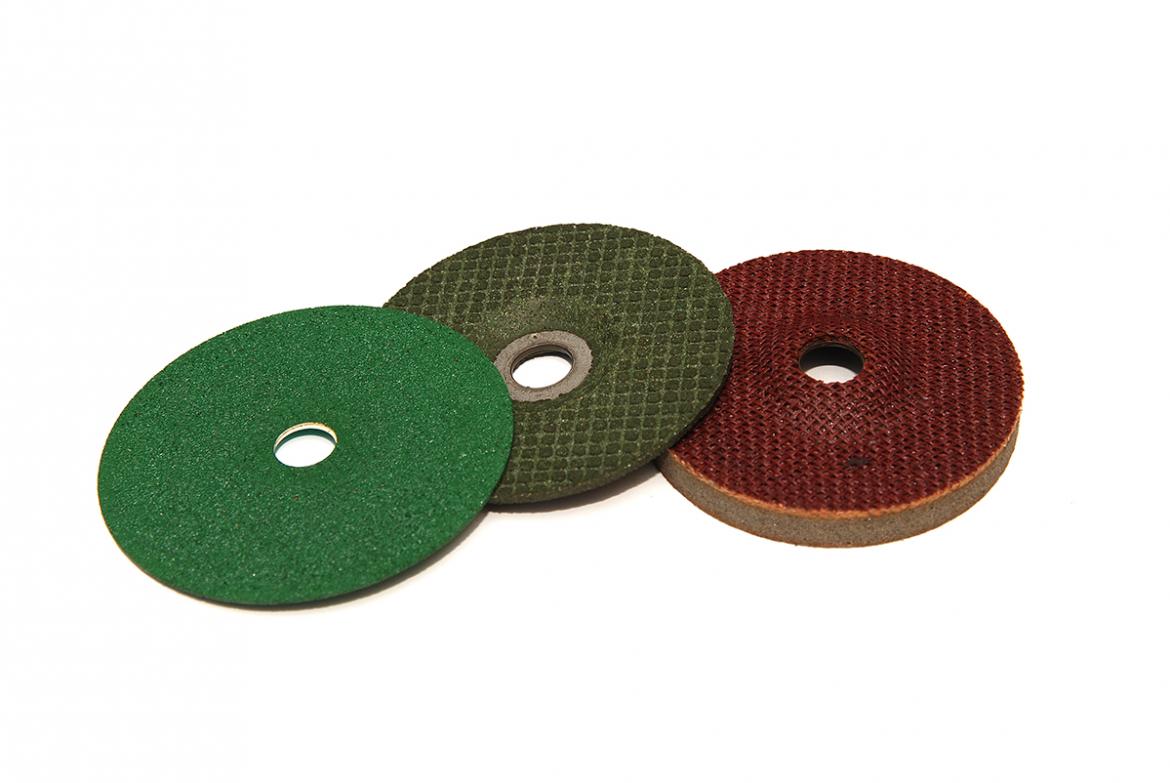

Applicaton: grinding wheel, sand cloth, abrasive paper, abrasive cloth, coated abrasive.
Products introduction
Powder type phenolic resin
| Product No | Apperarance | Melting Point | Flow (mm /125 ◦C) | Gel Time (Sec. /150 ◦C) | Description | Application |
| KBT-3625 | Light Yellow powder | 80-90 | 25-45 | 75-95 | Sharp ,smooth cutting | Cutting wheel |
| KBT-3648 | Light Yellow powder | 80-90 | 17-37 | 55-75 | Sharp ,smooth cutting | Cutting wheel |
| KBT-3640 | Light Yellow powder | 80-90 | 15-35 | 55-85 | Medium flow, Wear resistant | General use Cut/offset |
| KBT-3646H | Light Yellow powder | 89-90 | 10-30 | 30-60 | Hard and strong Heavy duty | Heavy duty |
| KBT-3540 | Light Yellow powder | 77-87 | 25-45 | 50-80 | Wear resistant Bonding strength | Offset wheel |
| KBT-3543 | Light Yellow powder | 77-87 | 25-45 | 50-80 | Sharp and strong bonding | Cutting wheel |
| KBT-3853 | Light Yellow powder | 78-85 | 30-50 | 50-80 | High adhesive strength | Cut/offset wheel |
Liquid type phenolic resin
Product No | Appearance | Specific Gravity (g/ml) | Viscosity (mPa.s/25◦C) | Non-volatile content (%) | Description |
KBT-7203 | Amber Liquid | 1.18 – 1.22 | 300 - 500 | 67 - 72 | Mix easy and water resistant |
KBT-7205 | Amber Liquid | 1.18 – 1.22 | 500 - 700 | 70 - 75 | Quick dry and easy to use |
